THE NEW MONOBLOCK THERMOREGULATION SYSTEM WITH INTEGRATED DRYCOOLER

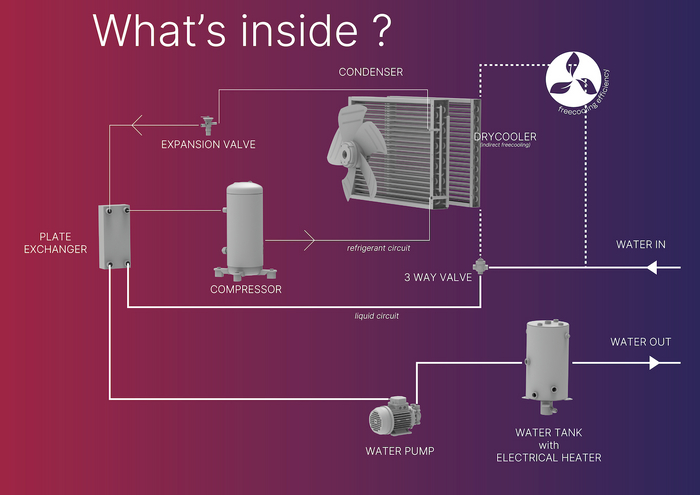

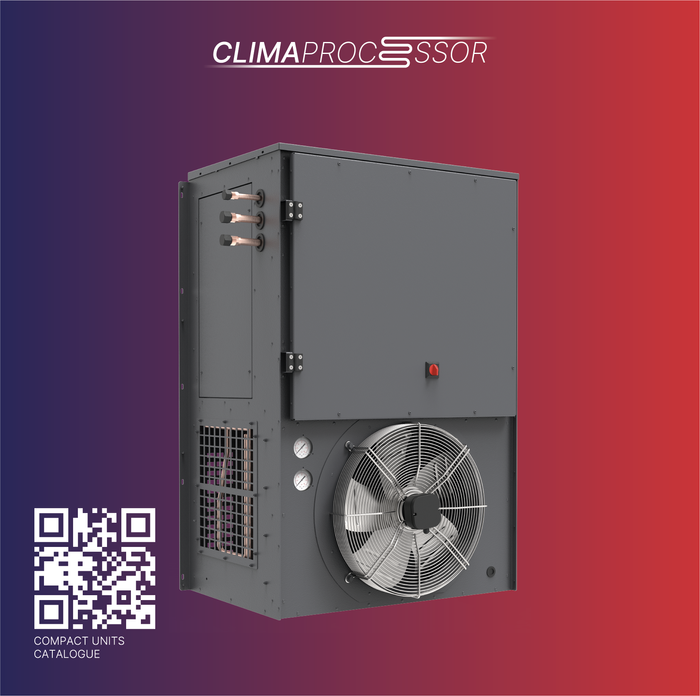

We are pleased to present CK-W, the first compact thermoregulator in the Clima Processor catalog. This innovative compact system is capable of optimizing space while providing a source of liquid at a constant and controlled temperature. CK-W is an outdoor unit designed to be wall-mounted. The high-quality materials used in its construction and the high degree of insulation allow it to withstand the most extreme conditions, with an operating range from -20 to +45°C. To improve energy efficiency, we have integrated a drycooler into this unit, which, functioning as a freecooling system, allows it to take advantage of favorable environmental conditions to reduce energy consumption. It is also possible to add a hydronic kit, which allows increasing the liquid's outlet pressure.

MAIN FEATURES
↘ Structure in powder coated aluminum C5 grade protection (ISO 12944), with cladding for thermal and acoustic insulation;
↘ Direct expansion coil condenser, copper tubes and aluminum fins treated with protection; saltaspray tested ASTM B117 (500h);
↘ Plate exchanger in thermally insulated stainless steel AISI316L;
↘ Scroll compressor with anti-vibration supports;
↘ Condenser Fan Radial “EC” Plug-in type;
↘ Hydronic group: stainless steel AISI304 storage 15 lt tank with external insulation, automatic air vent and electric heater.

OPTIONAL
↘ Drycooler with 3-way valve 0-10V for freecooling operation;
↘ Additional capacity for the tank;
↘ Hydronik kit for achieve an higher outlet pressure;
↘ Additional protective treatment for coils (11’000h or 15’000h resistance on ASTM B117 test);
↘ Snow kit (for installation in snowy environment);
↘ Sand trap (for installation in dusty and/or seashore environment);
↘ Container-specific interfaces with sealing gaskets.
