OUR FLAGSHIP MONOBLOCK HVAC UNITS INTEGRATING FREECOOLING TECHNOLOGY

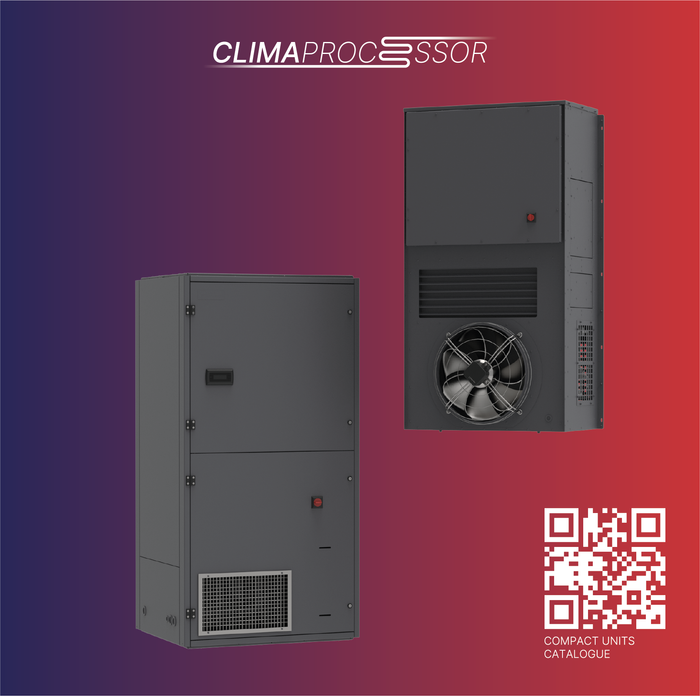

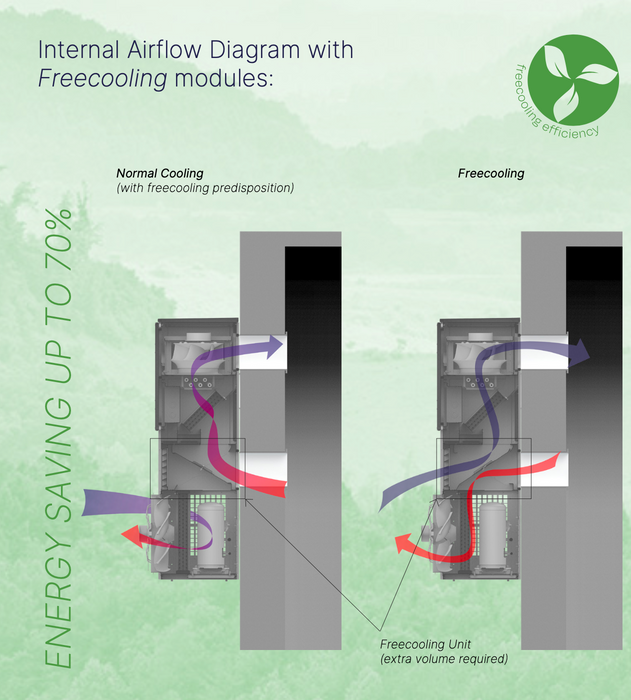

CK and CM, our most appreciated HVAC units, favored by customers for their fast and easy installation, making them the perfect choice for modular data centers, small server rooms, power converters, battery storage systems, and other technical applications. These are monoblock units that do not require external condensing units, eliminating the need for F-gas certified installers. These units are suitable for freestanding indoor (CM) or outdoor (CK) applications, and can be equipped with freecooling technology, a system that optimizes energy consumption by using favorable outdoor conditions for cooling. In the most favorable climates, such as Central and Northern Europe, energy savings coming from freecooling adoption can reach up to 80%!

 MAIN FEATURES
↘ Casing in powder coated galvanized steel (CM) or aluminum (CK); ↘ Suitable for indoor (CM) or outdoor (CK) installation;
↘ Direct expansion coil, copper tubes and aluminum fins with hydrophilic treatment;
↘ Scroll compressor (or BLDC as option);
↘ Treated Air & Condenser Fan “EC” Plug-in type;
↘ Air filtering G4 (CK) and F7 (CM) class (EN779);
↘ Refrigerant dehidrating filter with liquid sight-glass; ↘ Electronic Expansion Valve (EEV);
↘ R513a refrigerant, with low GWP;
↘ LCD display with controller;
↘ Modbus communication;
↘ Filter alarm;
↘ Smoke sensor & alarm.

OPTIONAL:
↘ Freecooling;
↘ Electrical heaters;
↘ Humidifier;
↘ Different airflow configuration with plenum;
↘ Customized air ducting;
↘ Aluminum frame externally painted C4 grade or internally & externally painted C5 grade (ISO EN12944);
↘ Special interfaces for container installation (CK);
↘ Fire damper;
↘ Protective treatment for coils (500h, 11’000h or 15’000h resistance on ASTM B117 test);
↘ Available in configuration suitable for medical applications and cleanrooms.
