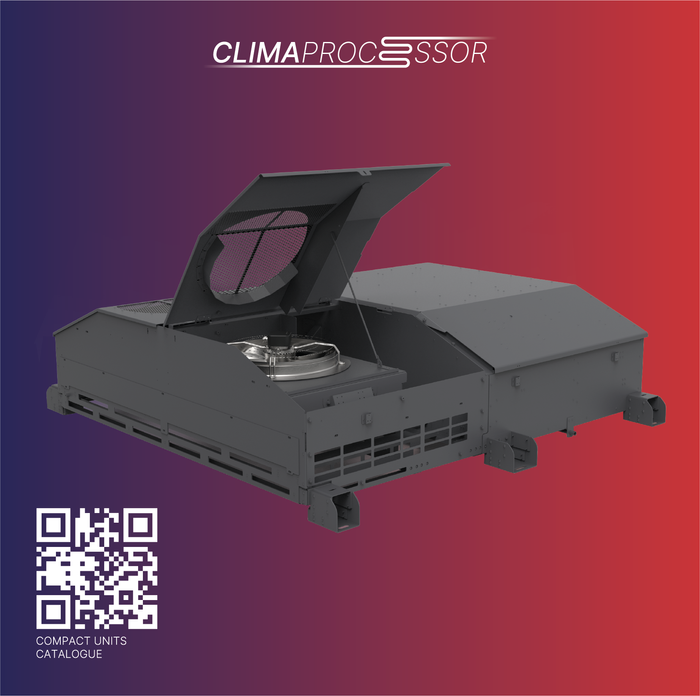

MONOBLOCK FLAT-ROOFTOP, SUITABLE WITH ALL STANDARD CONTAINERS, WITH INTEGRATED FREECOOLING

F-RT is a direct expansion rooftop air treatment unit, designed for maximum efficiency and flexibility in modular and mobile applications. F-RT is a monoblock unit with integrated condenser, equipped with freecooling functionality to reduce energy consumption when outdoor conditions are favorable. Specifically engineered for rooftop installation on standard-sized containers, it’s the ideal solution for modular or mobile data centers, energy storage systems, and power converters. Available with single or dual refrigerant circuits to ensure redundancy and continuous operation, F-RT offers power capacities ranging from 5 kW to over 50 kW, making it a reliable choice for a wide range of technical applications.

MAIN FEATURES:
↘ Structure in galvanized steel and service doors in powder coated aluminum C5 grade protection (ISO 12944), with cladding for thermal and acoustic insulation;
↘ R513a refrigerant (or R410a);
↘ Direct expansion coil condenser, copper tubes and aluminum fins treated with protection; saltaspray tested ASTM B117 (500h);
↘ Single or double circuit (for redundancy ‘N+1’ or for additional circuit);
↘ Scroll compressor with anti-vibration supports;
↘ Condenser Fan Radial “EC” Plug-in type;
↘ Easy installation due to lifting elements;
↘ Optimized shipping layout (up to 3 units packed in the space of a 10-foot container).

OPTIONAL:
↘ Freecooling damper;
↘ Additional redundant or additional circuit;
↘ Additional protective treatment for coils (11’000h or 15’000h resistance on ASTM B117 test);

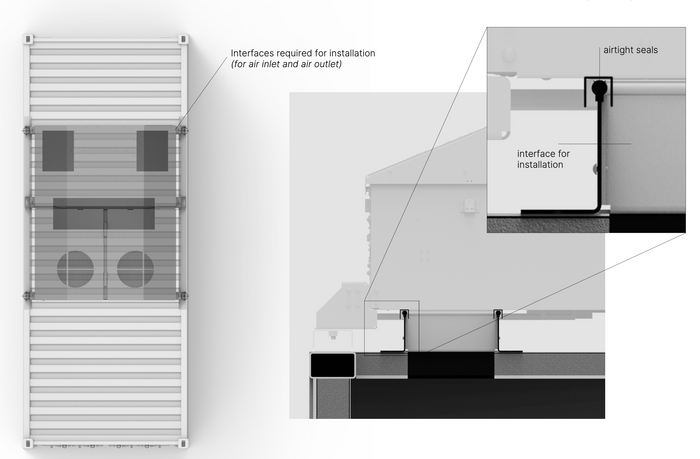

↘ Custom reinforced structure for container installation;

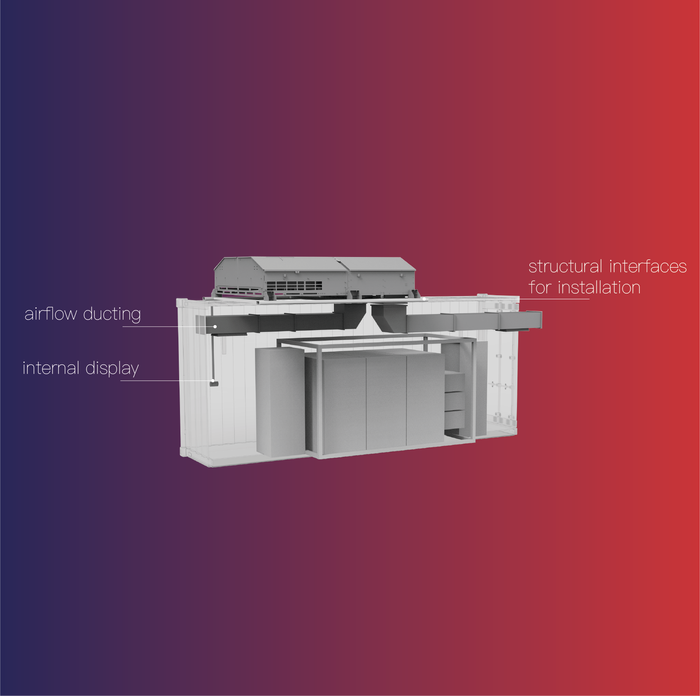

↘ Custom internal ducting for air delivery/extraction;
↘ Humidifier
