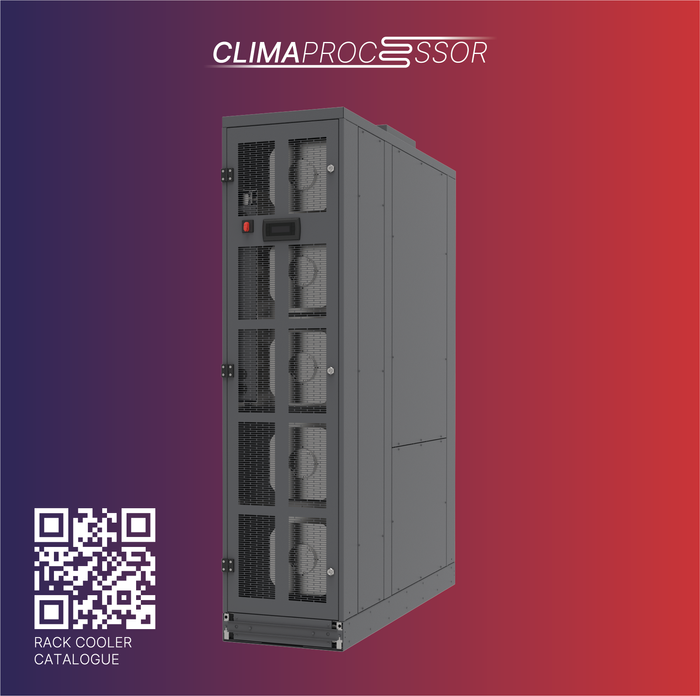

THE NEW MONOBLOCK RACK COOLER THAT INTEGRATES FREECOOLING TECHNOLOGY

We are pleased to introduce the new compact rack cooler model with integrated condenser, which joins our rack coolers product lineup, already including the RC-XA (direct expansion rack cooler, air-condensed), RC-XW (direct expansion rack cooler, water condensed), and RC-W (rack cooler liquid-cooled).
The installation of the RC-X COMPACT does not require any pre-existing circuits, making the setup quick and possible even without HVAC-certified installers.

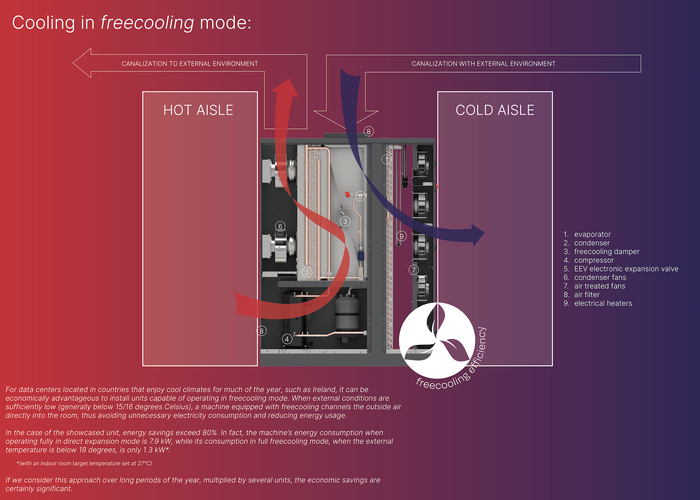

The real highlight of this new unit is its integrated freecooling system which can reduce energy consumption by up to 80% (with an external temperature of 18°C).

MAIN FEATURES:
↘ Casing in powder coated galvanized steel, with insulation Class EN 13501-2 A2.S1-d0 for thermal and acoustic insulation;
↘ Condensate dry pan in stainless steel;
↘ Direct expansion coil, copper tubes and aluminum fins with hydrophilic treatment;
↘ Scroll compressor (or BLDC as option);
↘ Treated Air & Condenser Fan “EC” Plug-in type;
↘ Double air filtering with G4 filters (EN779);
↘ Refrigerant dehidrating filter with liquid sight-glass;
↘ Electronic Expansion Valve (EEV);
↘ R513a refrigerant, with low GWP;
↘ LCD display with controller;
↘ Filter alarm;
↘ Smoke sensor & alarm.

OPTIONAL:

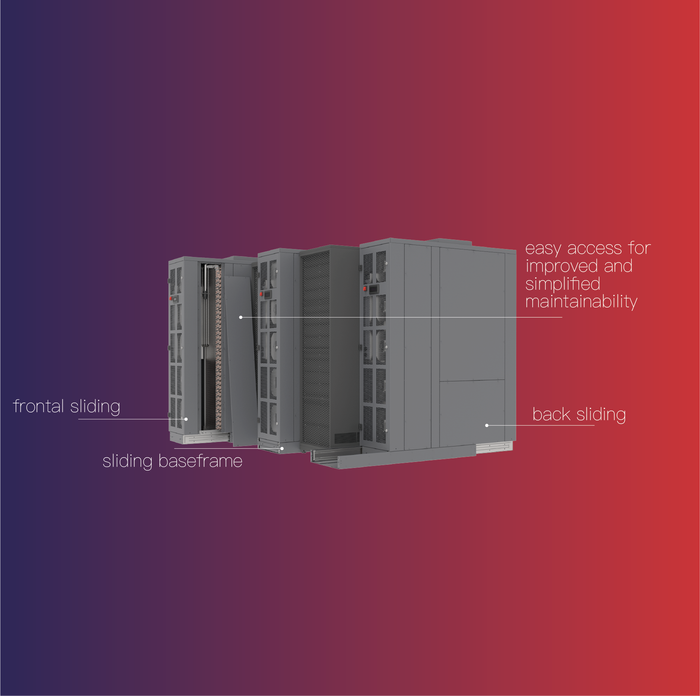

↘ Unit sliding system for improved easy-maintenance (bi-directional movement);
↘ Freecooling;
↘ Crankcase heater;
↘ Humidifier;
↘ Aluminum frame externally painted C4 grade or internally & externally painted C5 grade (ISO EN12944);
↘ ePM10 > 65% or 50% filter for internal treated air (ISO 16890 / equivalent F7 or M5 EN779);
↘ Fire damper;
↘ Protective treatment for coils (500h, 11’000h or 15’000h resistance on ASTM B117 test).
